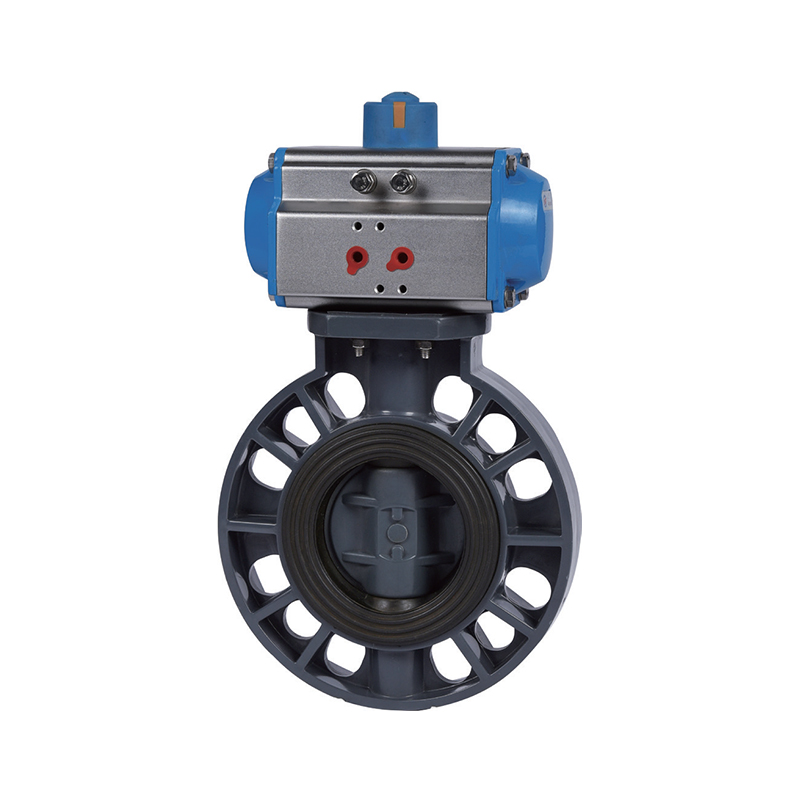

SCH8O/DIN UPVC/CPVC Pneumatic Butterfly Valve

SCH8O/DIN UPVC/CPVC Pneumatic Butterfly Valve

The pneumatic butterfly valve adopts a wafer-type design with a compact structure, small size, and lightweight design, making it convenient to install, transport, and maintain. It is driven by a pneumatic actuator that rotates the valve stem, enabling the disc to rotate quickly within the valve body by 90°, achieving rapid opening and closing with fast response. It precisely controls flow according to system requirements, providing stable and reliable throttling, cutoff, and isolation functions. The valve uses elastic sealing materials such as rubber or PTFE to ensure effective leakage prevention when closed. The pneumatic butterfly valve is suitable for various media such as water, oil, and steam and operates within a wide range of pressures and temperatures, meeting the demands of different piping systems.

Contate-nos
  • SCH8O/DIN UPVC/CPVC Pneumatic Butterfly Valve
Anterior：Válvula de borboleta elétrica
Próximo：SCH8O/DIN UPVC/CPVC Electric Flange Ball Valve
Parâmetros Aplicação Normas Técnicas

  • (1) Material: UPVC, CPVC
    (2) Size: 2"-12", DN50-DN300, dn63-dn315
    (3) Standards: ANSI, DIN
    (4) Connection: flange
    (5) Work pressure: 150PSI, 1.0MPa
    (6) Operating temperature: UPVC(-10°C-60°C), CPVC(-10°C-90°C)
    (7) Minimum air pressure: 45PSI, 0.4MPa
    (8) Body color: UPVC (dark gray), CPVC (light gray)

    SIZE/NOM.

    dn63

    dn75

    dn90

    dn110

    dn140

    dn160

    dn225

    dn280

    dn315

    (DN50)

    (DN65)

    (DN80)

    (DN100)

    (DN125)

    (DN150)

    (DN200)

    (DN250)

    (DN300)

    (2")

    (2-1/2")

    (3")

    (4")

    (5")

    (6")

    (8")

    (10")

    (12")

    D1

    160

    180

    196

    228

    258

    287

    344

    411

    490

    D2

    DIN

    125

    145

    160

    180

    210

    240

    295

    350

    400

    ANSI

    121

    140

    152

    191

    216

    241

    298

    362

    346

    JIS

    120

    140

    150

    175

    210

    240

    290

    355

    400

    N-Φ

    DIN

    4-Φ18

    4-Φ18

    8-Φ18

    8-Φ18

    8-Φ18

    8-Φ22

    8-Φ22

    8-Φ22

    12-Φ22

    ANSI

    4-Φ19

    4-Φ19

    4-Φ19

    4-Φ19

    8-Φ22

    8-Φ22

    8-Φ22

    12-Φ25

    12-Φ25

    JIS

    4-Φ19

    4-Φ19

    8-Φ19

    8-Φ19

    8-Φ23

    8-Φ23

    12-Φ23

    12-Φ25

    16-Φ25

    H1

    100

    110

    132

    155

    167

    180

    225

    260

    280

    W1

    43

    46

    49

    54

    64

    70

    88

    98

    108

    Torque (N · M)

    10

    10

    15

    22

    40

    45

    65

    -

    		-

    Actuator working mode double-acting/single-acting (NC normally closed, NO normally open)

    Specification

    63

    75

    90

    110

    140

    160

    225

    280

    315

    2"

    2 1/2"

    3"

    4"

    5"

    6"

    8"

    10"

    12"

    Controlling stress

    4~8

    NAMUR standard air source interface

    G  1/4"

    Double acting actuator models

    TBN052D

    TBN063D

    TBN075D

    TBN083D

    TBN092D

    TBN105D

    TBN7105D

    TBN125D

    TBN140D

    Single acting actuator models

    TBN063SK

    TBN075SK

    TBN083SK

    TBN092SK

    TBN105SK

    TBN125SK

    TBN125SK

    TBN140SK

    TBN160SK

SCH80 / DIN · PNEUMATIC · WAFER/LUG
UPVC / CPVC Pneumatic Butterfly Valve
Double-acting · Spring-return · Liner sealed · ISO 5211
The SCH80/DIN UPVC/CPVC Pneumatic Butterfly Valve is an automated quarter-turn flow control device engineered for on-off and throttling service in corrosive and high-purity fluid systems. Manufactured to ASTM SCH80 and DIN standards, this valve integrates a pneumatic actuator with a wafer or lug-style butterfly valve body. The actuator is available in double-acting or spring-return configurations, providing fail-safe positioning. The resilient liner — available in EPDM, PTFE, or Viton — provides bubble-tight shut-off across the full pressure range. The wafer and lug configurations allow for dead-end service and easy installation between standard flanges. The actuator mounting follows ISO 5211 standards. This valve is widely used in automated process control, chemical dosing, water treatment, and industrial manufacturing systems requiring lightweight, compact, and cost-effective flow control.
DN40–DN300 Size range
PN10–PN16 Pressure rating
–20°C to 93°C CPVC range
ISO 5211 Mounting pad
Liner Sealing
The replaceable EPDM, PTFE, or Viton liner provides a tight seal around the disc and flange faces, eliminating leakage paths and simplifying maintenance.
Automated Operation
Double-acting or spring-return actuators enable remote control, process automation, and fail-safe positioning without operator intervention.
Chemical Compatibility
UPVC and CPVC bodies resist a broad spectrum of acids, bases, and salts. Liner material can be selected to match specific chemical exposure.
Throttling Capability
The butterfly design allows for precise flow modulation across the 0–90° rotation range, providing control flexibility beyond simple on-off service.
Valve Specifications
Body UPVC · CPVC
Disc Solid UPVC/CPVC · Coated ductile iron
Liner EPDM · PTFE · Viton (FKM)
Connection Wafer · Lug (DIN/ANSI drilling)
Standards ASTM D2467 · DIN 8061/8062 · ISO 16136
Actuator Data
Type Double-acting · Spring-return
Supply pressure 4–8 bar
Mounting ISO 5211 · Direct mount
Rotation 90° · Adjustable stroke
Accessories Positioner · Limit switches · Solenoid
Actuator sizing depends on valve torque and supply pressure. Consult factory for selection.
Application Areas
Chemical Acid transfer · Caustic dosing · Reactor feed
Semiconductor UPW distribution · Chemical delivery · Wet benches
Energy Battery electrolyte · Cooling water · Solar etching
Water Wastewater · RO permeate · Desalination · Discharge
Pharma DI water loops · CIP systems · Sanitary lines
Automotive Paint circulation · Parts washing · Coolant
Installation Guidelines
  • Wafer installation: Center the valve between flanges. Use appropriate flange bolts and nuts. Tighten evenly in a cross pattern.
  • Lug installation: Bolt directly to one flange for dead-end service. Use full-face gaskets on both sides.
  • Disc positioning: The disc should be in the closed position during installation to avoid damage to the liner.
  • Air supply: Filtered, lubricated air at 4–8 bar. Use solenoid valve for remote control.
  • Actuator mounting: Ensure ISO 5211 mounting pad alignment. Use correct coupling and bracket.
  • Testing: Cycle valve manually and pneumatically before placing in service.
Critical Restrictions
  • Temperature: UPVC 60°C max · CPVC 93°C max · Do not exceed liner rating.
  • Air pressure: Do not exceed 8 bar supply pressure. Actuator torque increases with pressure.
  • Not rated for steam service. Avoid rapid thermal cycling and pressure surges.
  • Do not use EPDM liner with hydrocarbon solvents, oils, or strong oxidizers.
  • PTFE liner has limited abrasion resistance — not recommended for slurries with high solids content.
  • UV exposure: Use UV-stabilized material or apply protective coating.
  • Do not operate the valve in the 5–85% open range for extended periods in abrasive media.
Frequently Asked Questions
What is the difference between wafer and lug styles?
Wafer style is installed between two flanges and held in place by flange bolts. It is lightweight and cost-effective. Lug style has threaded inserts on both sides, allowing the valve to be bolted directly to one flange for dead-end service and isolation of downstream piping.
How do I select the correct liner material?
EPDM is suitable for water, mild acids, and alkalis up to 80°C. PTFE is recommended for aggressive chemicals, solvents, and high-purity applications up to 93°C. Viton (FKM) is used for hydrocarbons, oils, and strong oxidizers up to 90°C. Always verify compatibility with your specific process chemistry.
Can this valve be used for throttling control?
Yes, with a positioner and appropriate control signal (4–20 mA or 0–10 V). The pneumatic actuator provides proportional positioning, enabling accurate flow control. However, throttling service may reduce liner life compared to on-off service.
What accessories are recommended?
Common accessories include solenoid valves for remote on-off control, positioners for throttling, limit switches for position feedback, and filter-regulator-lubricator units for air preparation. Accessory selection depends on the application and control system requirements.
These pneumatic butterfly valves serve chemical, metallurgical, photovoltaic, nuclear, lithium, semiconductor, food, pharmaceutical, automotive, and water treatment industries — handling acids, alkalis, ultrapure water, potable water, electronic grade water, and industrial wastewater.
ASTM D2467 DIN 8061/8062 ISO 5211 SCH80 Wafer/Lug Pneumatic
Produtos Recomendados
Empresa
Zheyi Pipeline (Wuhan) Co., Ltd.
Zheyi Pipeline (Wuhan) Co., Ltd.

ZHEYI Group Sim China SCH8O/DIN UPVC/CPVC Pneumatic Butterfly Valve Para indústria de alimentos/automotivo/eletrônico Fornecedor E Personalização SCH8O/DIN UPVC/CPVC Pneumatic Butterfly Valve Para indústria de alimentos/automotivo/eletrônico Fábrica. Fundada em 2007, focamo-nos na investigação e desenvolvimento, fabrico, vendas e serviços de tubos industriais de CPVC e UPVC. A empresa obteve diversas certificações, incluindo a Licença de Produção de Equipamento Especial, a Licença de Higiene de Produtos Relacionados com a Água da Província de Zhejiang, a Certificação do Sistema de Gestão da Qualidade IS09001, a Certificação do Sistema de Gestão Ambiental IS014001 e a Certificação do Sistema de Gestão de Segurança e Saúde no Trabalho IS045001. A empresa detém mais de 50 direitos de propriedade intelectual independentes e direitos de importação e exportação autónomos. Para fornecer produtos diversificados e melhores serviços, a empresa introduziu tecnologia avançada, equipamentos de ferramentas e matérias-primas e sistemas de gestão exclusivos da Alemanha e dos Estados Unidos. Ao longo dos anos, os nossos produtos têm sido amplamente utilizados no transporte por condutas de líquidos ácidos e alcalinos, água ultrapura, água potável, água pura de grau eletrónico e efluentes industriais nas indústrias química, metalúrgica, fotovoltaica, nuclear, de baterias de lítio, semicondutores eletrónicos, alimentar, médica, automóvel, de tratamento de águas industriais, entre outras. Atualmente, o Grupo ZHEYI conta com mais de 30 empresas de vendas em todo o país, exportando diversos produtos para a Europa, América, Sudeste Asiático e outros países e regiões, com grande aceitação por parte de clientes nacionais e estrangeiros.

Certificado de Honra
  • ISO 9001: 2015
  • ISO 14001: 2015
  • ISO 45001: 2018
  • ISO 45001: 2018
  • ISO: 45001-2018 En
  • Empresa nacional de alta tecnologia
  • Certificado
  • Certificado
Notícias
Mensagem de Feedback
  • Zheyi Pipeline (Wuhan) Co., Ltd.
    Controlo de qualidade rigoroso

    O Grupo ZHEYI segue o princípio da "qualidade em primeiro lugar", adotando equipamentos avançados internacionais e matérias-primas de alta qualidade, controlando rigorosamente todos os elos da produção e comprometendo-se a fornecer produtos de tubagem com excelente desempenho e aparência requintada.

    A empresa utiliza os equipamentos de produção mais avançados e materiais de alta qualidade, incluindo a Japan Sekisui Company e a American Lubrizol Company. A ZHEYI combina na perfeição uma tecnologia de produção requintada com uma gestão profissional, e cada produto passa por um rigoroso controlo de qualidade, desde a produção e inspeção até à entrega final, garantindo a combinação perfeita entre aspeto e funcionalidade.

  • Zheyi Pipeline (Wuhan) Co., Ltd.
    Testes de desempenho de precisão
    Na ZHEYI, cada produto é cuidadosamente elaborado, com foco não só num design estético requintado, mas também sempre comprometido com a excelente qualidade intrínseca. Testes de desempenho rigorosos garantem que o produto mantém a estabilidade e a durabilidade mesmo em condições adversas.:

    ● Teste de densidade: mede a densidade do material para garantir a uniformidade e a estabilidade da estrutura.
    ● Ensaio de temperatura de amolecimento Vicat: avalia o grau de amolecimento dos materiais em condições de temperatura elevada para garantir a capacidade do produto resistir à deformação em diversos ambientes.
    ● Teste em forno: simula a resistência ao calor a longo prazo para verificar a tolerância do produto a altas temperaturas a longo prazo.
    ● Teste de pressão hidrostática: avalia a resistência das tubagens em condições de alta pressão para garantir a segurança e a fiabilidade do produto.
    ● Teste de impacto com martelo de queda: testa a resistência ao impacto dos produtos durante o transporte, a instalação e a utilização diária.

SCH8O/DIN UPVC/CPVC Pneumatic Butterfly Valve Conhecimento do setor

Selection Guide for Pneumatic Butterfly Valves in Industrial Automation: How to Match Pressure, Temperature and Media?

In industrial automation systems, pneumatic butterfly valves are widely used in multiple industries due to their fast response, compact structure and easy control. However, different industries have different requirements for valve pressure, temperature and media compatibility. Improper selection may lead to valve failure, leakage or shortened life. The following are key selection points for different industries:

1. Pressure level matching
Pneumatic butterfly valves need to select appropriate design pressures (such as PN10, PN16, ANSI 150, etc.) according to the system working pressure:
Photovoltaic, Electronic Semiconductor: Usually low pressure (PN6~PN10), used for ultrapure water or gas delivery.
Metallurgy, Nuclear Power: Medium and high pressure (PN16~PN40), need to resist impact pressure, especially high temperature and high pressure steam or corrosive fluids.
Industrial Wastewater, Drinking Water: Normal pressure to medium pressure (PN10~PN16), water hammer effect needs to be considered.

2. Temperature adaptability
The valve body material (such as cast iron, stainless steel, fluorine lining) and sealing material (EPDM, PTFE, NBR) need to match the medium temperature:
Medicine, semiconductor: low temperature or normal temperature (-20°C~120°C), sterile grade materials (such as 316L stainless steel PTFE seal) are required.
Metallurgy, nuclear energy: high temperature (200°C~500°C), metal hard seal or special alloy valve body is required.
Photovoltaic: may involve extreme temperature difference, and weather-resistant materials are required.

3. Medium compatibility
The corrosiveness and particulate content of the medium determine the valve material and sealing solution:
Drinking Water, Industrial Water Treatment: requires no pollution, and EPDM or FDA-certified sealing materials are selected.
Industrial wastewater: containing acid, alkali or solid particles, requires fluorine lining (PTFE) or wear-resistant rubber seal.
Electronic semiconductor: ultrapure water or high-purity gas, the inner wall of the valve needs to be electrolytically polished to avoid particle precipitation.
Nuclear energy: radioactive media require all-metal sealing valves with special certification (such as ASME N grade).

Industry application examples
Photovoltaic: low-pressure and room-temperature ultrapure water transportation, emphasizing zero leakage and long life.
Metallurgy: high temperature and high dust environment, valves need to be wear-resistant and anti-stuck.
Medicine: high sterility requirements, valves need to be easy to clean (CIP/SIP compatible).
Nuclear energy: under extreme working conditions, valves need to meet seismic and radiation protection standards.

Não perca! Entre em contacto connosco para obter as informações mais recentes!
